שם: מצמד מעבר 75 × 63
מק"ט: 871106075063
קוטר: 75 mm
משקל [גרם]: 966 g
תקנים: ISO 14236, AS/NZS 4129, ISO 7/1, BS 21, DIN 2999, UNI 9561, NEN 3258, AS 1722, DIN 8076
טמפרטורות הפעלה: Maximum temperature of use for fittings and valves is the same as that for polyethylene pipe and they are not intended for use in hot water applications. They will withstand sub-zero temperatures.
חומר גלם אטם: EPDM
חומר גלם אום: Polypropylene, high-grade copolymer.
Installation_Notes: Excessive torque during tightening can cause nut deformation and result in joint failure; therefore use a Plasson wrench or other spanner with handle length not greater than 46 cm. If fittings are reused, avoid pull outs by ensuring the split ring is sharp and bites into the pipe. Alternatively replace split ring.

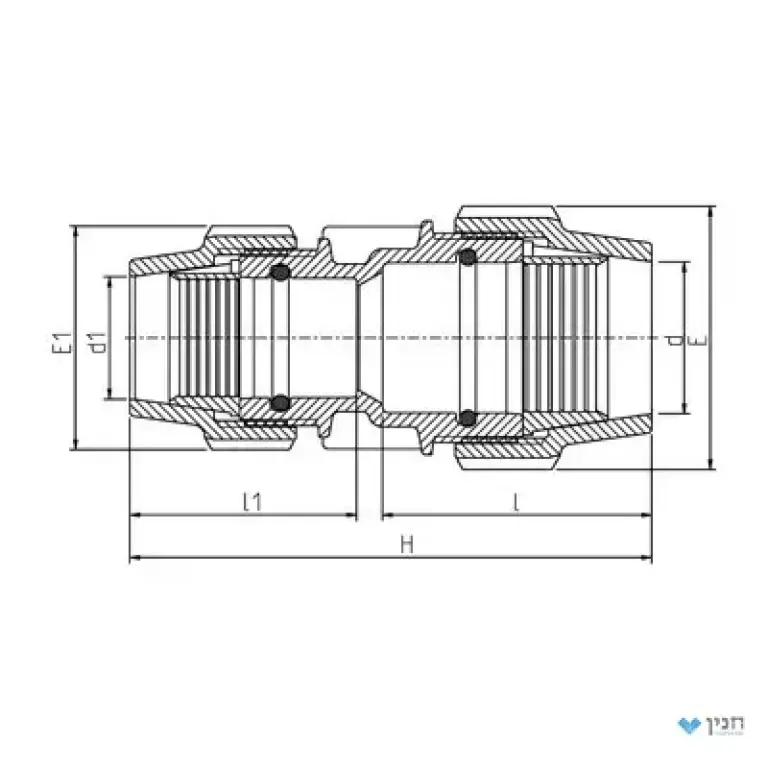

d: 75 mm
D1: 63 mm
E: 132 mm
E1_Cap: 113 mm
l: 141 mm
l1: 112 mm
H: 261 mm
יחידות בקרטון: 18
